MSA-0170

Cascadable Silicon Bipolar MMIC Amplifier

MSA-0170 Features

* Cascadable 50 Ω Gain Block

* 3 dB Bandwidth: DC to 1.3 GHz

* High Gain: 18.5 dB Typical at 0.5 GHz

* Unconditionally Stable (k>1)

* Hermetic Gold-ceramic Microstrip Package designed for use as a general purpose 50 Ω gain block. Typical applications include

MSA-0170 General Description

The MSA-0170 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a hermetic high reliability package. This MMIC is Typical Biasing Configuration R bias VCC > 7 V RFC (Optional) 4 C block 3 IN 1 MSA C block OUT Vd = 5 V 2 5965-9692E 6-254 MSA-0170 Abs.

MSA-0170 Datasheet (51.58 KB)

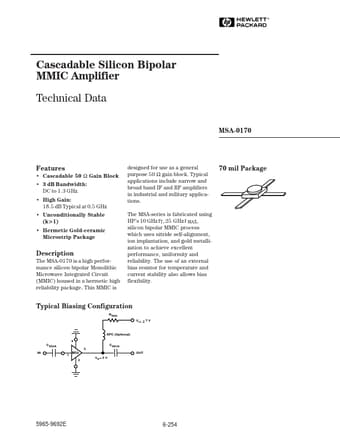

Preview of MSA-0170 PDF

Datasheet Details

Part number:

MSA-0170

Manufacturer:

Hewlett-Packard

File Size:

51.58 KB

Description:

Cascadable silicon bipolar mmic amplifier.
