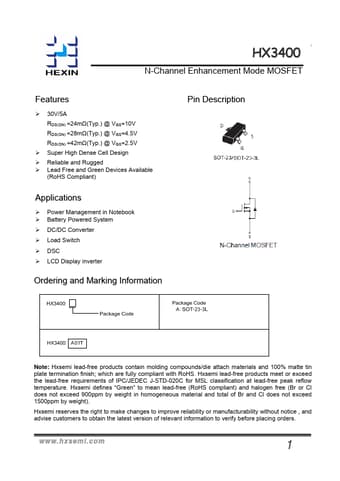

HX3400 Datasheet, MOSFET, Hexin Semiconductor

HX3400 Features

• Mosfet
• 30V/5A RDS(ON) =24mΩ(Typ.) @ VGS=10V RDS(ON) =28mΩ(Typ.) @ VGS=4.5V RDS(ON) =42mΩ(Typ.) @ VGS=2.5V
• Super High Dense Cell Design
• Reliable and Rugged

PDF File Details

Part number:

HX3400

Manufacturer:

Hexin Semiconductor

File Size:

297.91kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode mosfet. Note: Hxsemi lead-free products contain molding compounds/die attach materials and 100% matte tin plate termination finish; which ar

HX3400 Application

• Applications
• Power Management in Notebook
• Battery Powered System
• DC/DC Converter
• Load Switch
• DSC <
