SGM107R7T 100V 90A N-CHANNEL POWER MOSFET

SGM107R7T Description

100V, 90A N-CHANNEL POWER MOSFET GENERAL .
The SGM107R7T uses advanced SGT technology and design to provide excellent RDS(on) with low gate charge.

SGM107R7T Features

* VDS=100V, ID=90A

📥 Download Datasheet

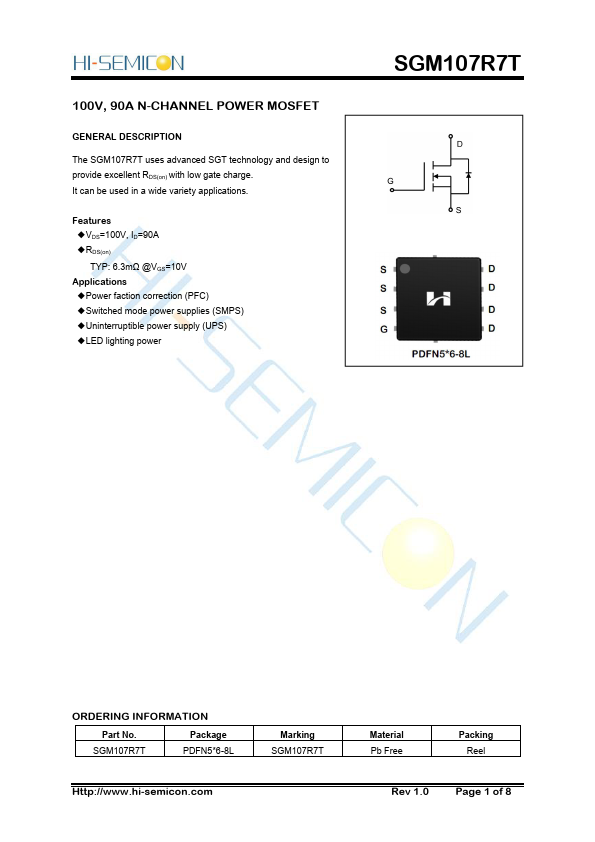

Preview of SGM107R7T PDF

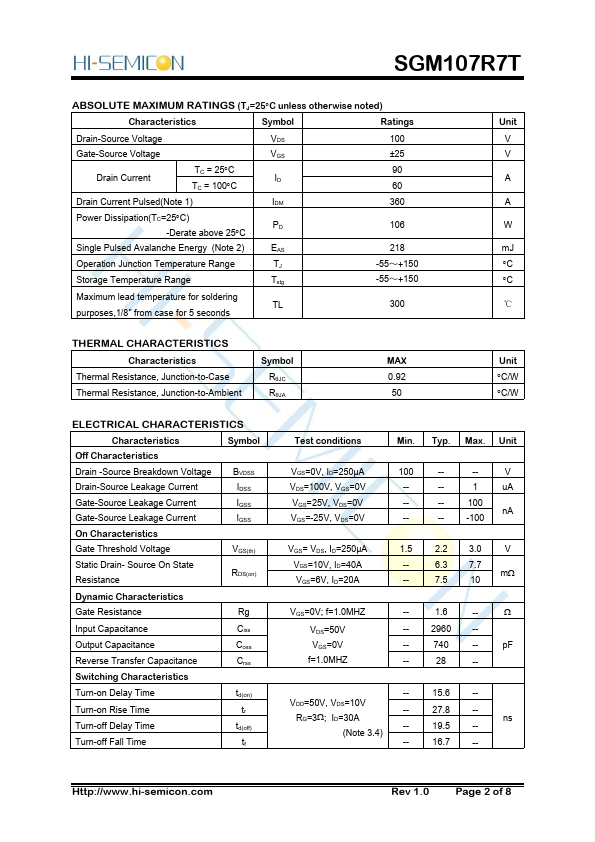

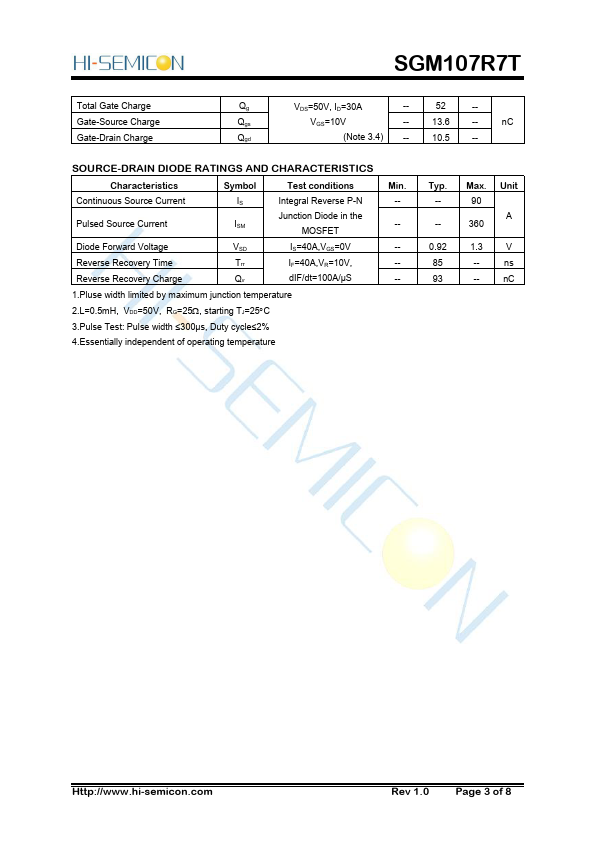

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM107R7T
Manufacturer
HiSemicon
File Size
621.77 KB
Datasheet
SGM107R7T-HiSemicon.pdf
Description
100V 90A N-CHANNEL POWER MOSFET
