SGM041R8T - 150A 40V N-CHANNEL POWER MOSFET

The SGM041R8T by HiSemicon is a 150A 40V N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

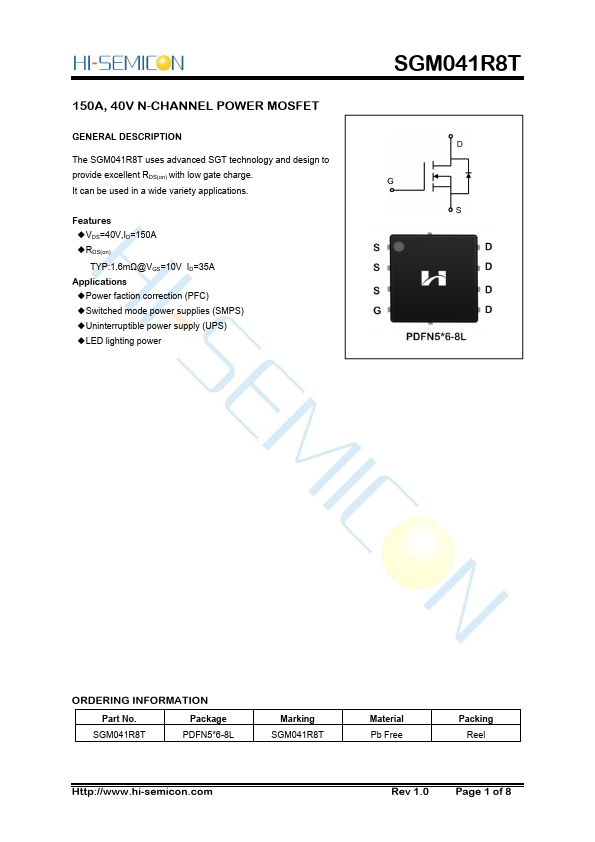

Official preview page of the SGM041R8T 150A 40V N-CHANNEL POWER MOSFET datasheet (HiSemicon).

Datasheet Details

Part number SGM041R8T
Manufacturer HiSemicon
File Size 1.86 MB
Description 150A 40V N-CHANNEL POWER MOSFET
Datasheet download datasheet SGM041R8T-HiSemicon.pdf

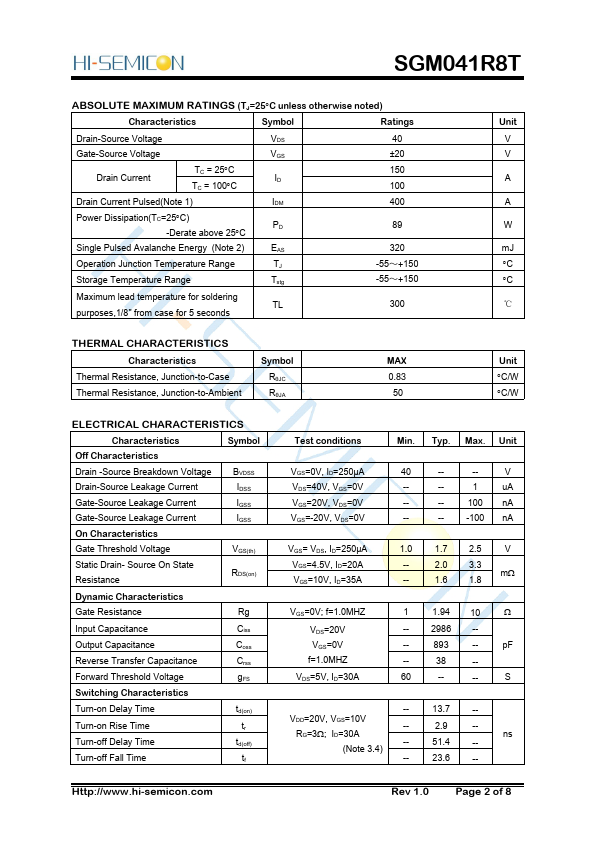

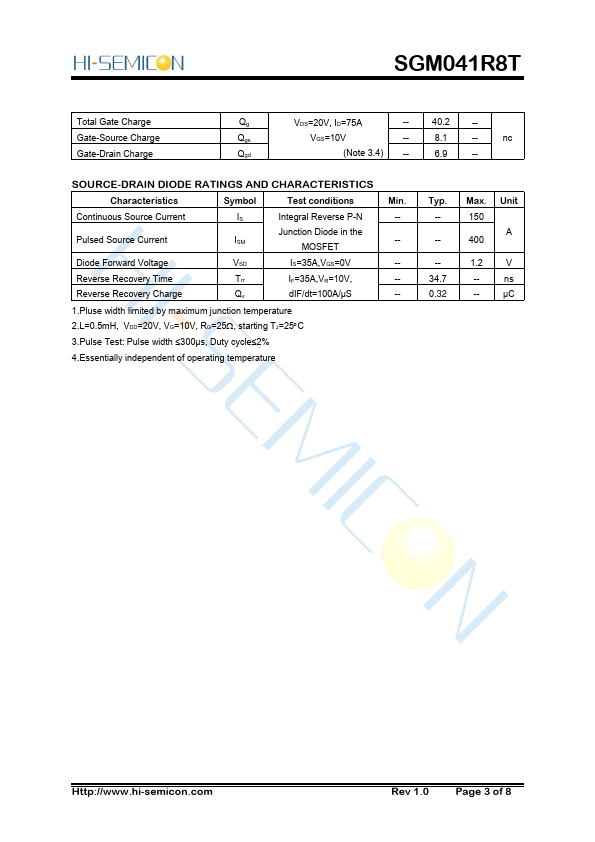

Additional preview pages of the SGM041R8T datasheet.

SGM041R8T Product details

Description

The SGM041R8T uses advanced SGT technology and design to provide excellent RDS(on) with low gate charge.

Features
