SGM042R8T 40V 100A N-CHANNEL POWER MOSFET

SGM042R8T Description

40V, 100A N-CHANNEL POWER MOSFET GENERAL .
The SGM042R8T uses advanced SGT technology and design to provide excellent RDS(on) with low gate charge.

SGM042R8T Features

* VDS=40V, ID=100A

📥 Download Datasheet

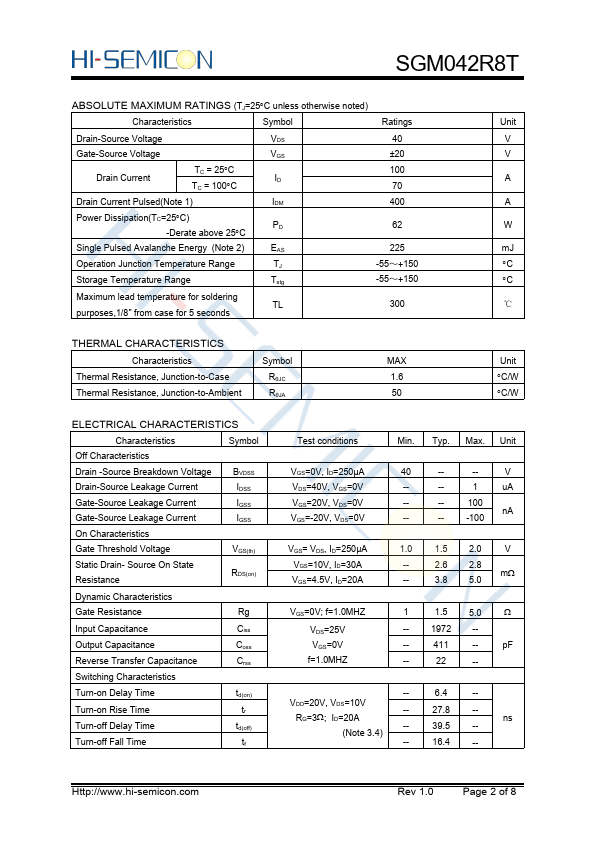

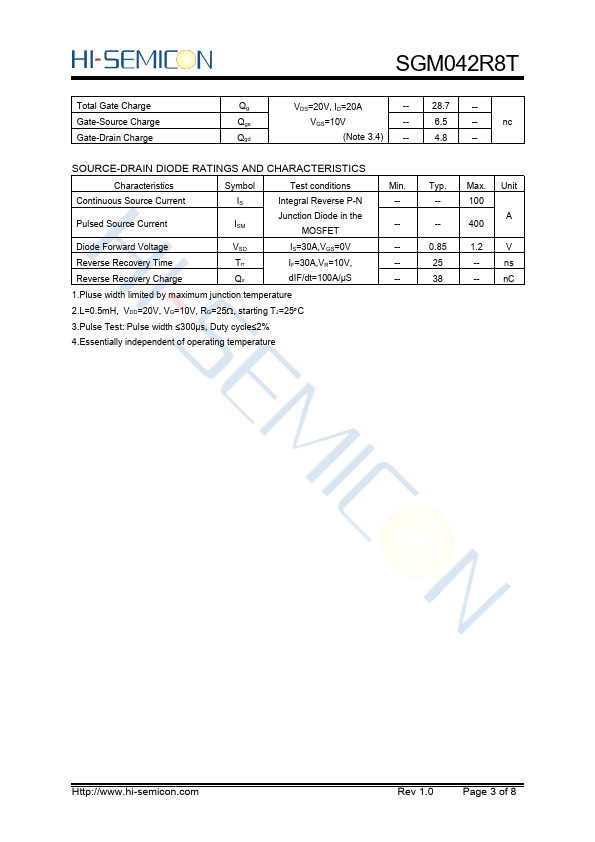

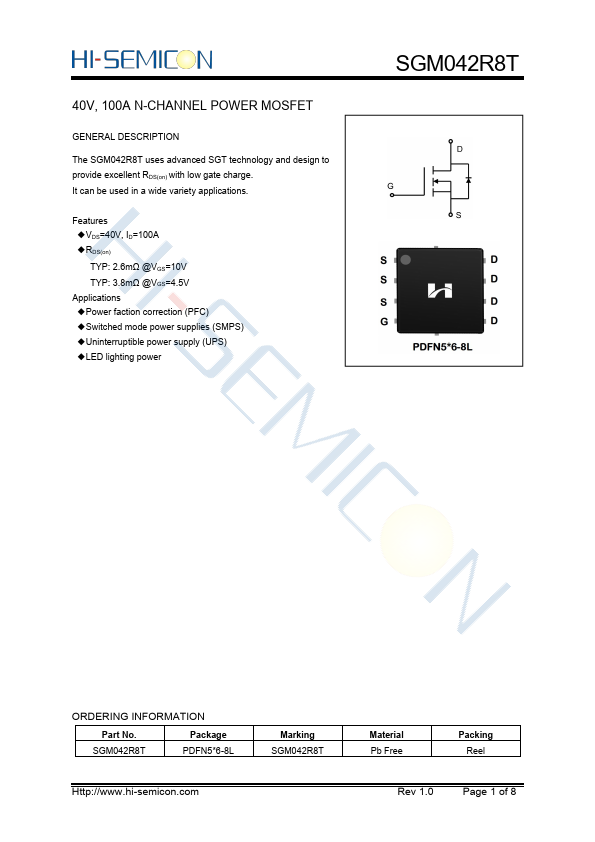

Preview of SGM042R8T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM042R8T
Manufacturer
HiSemicon
File Size
636.01 KB
Datasheet
SGM042R8T-HiSemicon.pdf
Description
40V 100A N-CHANNEL POWER MOSFET
