SGM0410S

N-Channel Enhancement Mode Power MOSFET

SGM0410S Features

* Lower Gate Charge Simple Drive Requirement Fast Switching Characteristic MARKING 0410S = Date code PACKAGE INFORMATION Package MPQ SOT-89 1K Leader Size 7 inch SOT-89 A Top View C B KL E 123 D F GH 4 J REF. A B C D E F Millimeter Min. Max. 4.40 4.60 4.05 4.25 2.40 2.60 1.40 1.60 3.0

SGM0410S General Description

The SGM0410S provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOT-89 package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/D.

SGM0410S Datasheet (483.21 KB)

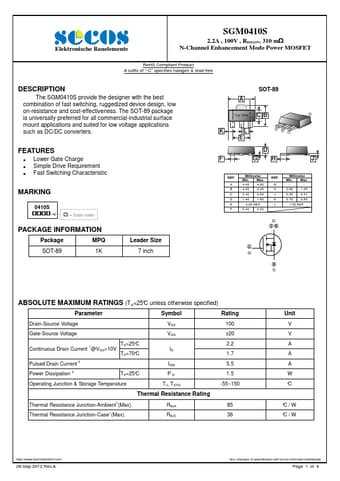

Preview of SGM0410S PDF

Datasheet Details

Part number:

SGM0410S

Manufacturer:

SeCoS

File Size:

483.21 KB

Description:

N-channel enhancement mode power mosfet.
Elektronische Bauelemente SGM0410S 2.2A , 100V , RDS(ON) 310 mΩ N-Channel Enhancement Mode Power MOSFET RoHS Compliant Product A suffix of “-C” spec.
