SGM11102S High Isolation SPDT Switch

SGM11102S Description

SGM11102S High Isolation SPDT Switch GENERAL .
The SGM11102S is a 1-bit control single-pole/doublethrow (SPDT) switch, which supports from 0.

SGM11102S Features

* low control voltage and high isolation. The SGM11102S has the ability to integrate the ESD protection circuits to achieve high ESD tolerance. No external DC blocking capacitors are required on the RF paths as long as no external DC voltage is applied, which can save PCB area and cost. The SGM11102S

SGM11102S Applications

* Multi-Mode 2G/3G/4G/5G and Receive System Applications Pre PA Switching, Reception Bands Switching Applications General Purpose Switching Applications Feedback RX Applications BLOCK DIAGRAM VDD VCTL Supply and Logic RF1 RFCOM RF2 Figure 1. SGM11102S Block Diagram SG Micro Corp www. sg-micro. co

📥 Download Datasheet

Preview of SGM11102S PDF

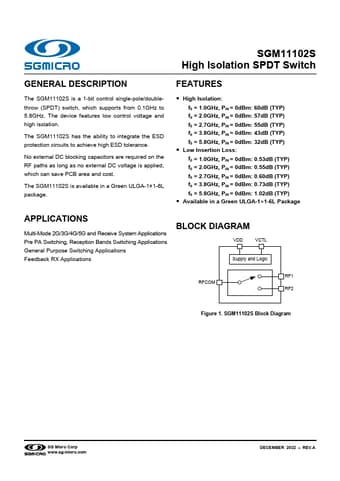

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM11102S
Manufacturer
SG Micro
File Size
506.78 KB
Datasheet
SGM11102S-SGMicro.pdf
Description
High Isolation SPDT Switch
