2SB1110, 2SB1109 Datasheet - Hitachi Semiconductor

2SB1110 PNP Transistor

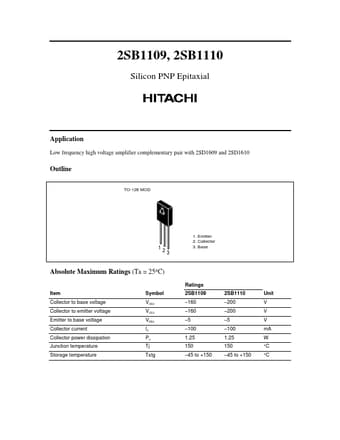

2SB1109, 2SB1110 Silicon PNP Epitaxial Application Low frequency high voltage amplifier complementary pair with 2SD1609 and 2SD1610 Outline TO-126 MOD 123 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg 1. Emitter 2. Collector 3. Base Ratings 2SB1109 160 160 5 1.

2SB1109_HitachiSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 2SB1110, 2SB1109. Please refer to the document for exact specifications by model.
2SB1110 Datasheet Preview Page 2 2SB1110 Datasheet Preview Page 3

Datasheet Details

Part number:

2SB1110, 2SB1109

Manufacturer:

Hitachi Semiconductor

File Size:

25.11 KB

Description:

Pnp transistor.

Note:

This datasheet PDF includes multiple part numbers: 2SB1110, 2SB1109.
Please refer to the document for exact specifications by model.
