2SB1103 Datasheet - Hitachi Semiconductor

2SB1103 PNP Transistor

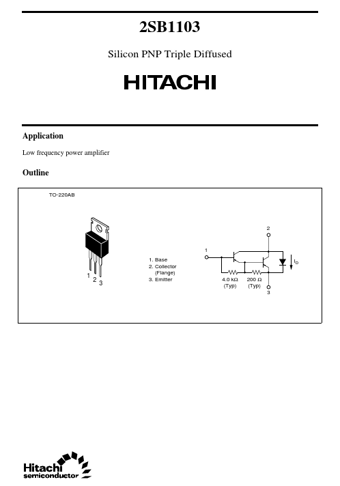

2SB1103 Silicon PNP Triple Diffused Application Low frequency power amplifier Outline TO-220AB 2 1 1. Base 2. Collector (Flange) 3. Emitter ID 4.0 kΩ (Typ) 200 Ω (Typ) 3 1 2 3 2SB1103 Absolute Maximum Ratings (Ta = 25°C) Item Collector to emitter voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature C to E diode forward current Note: 1. Value at TC = 25°C. Symbol VCBO VCEO .

2SB1103_HitachiSemiconductor.pdf

Preview of 2SB1103 PDF
2SB1103 Datasheet Preview Page 2 2SB1103 Datasheet Preview Page 3

Datasheet Details

Part number:

2SB1103

Manufacturer:

Hitachi Semiconductor

File Size:

36.84 KB

Description:

Pnp transistor.
