2SB1100 Datasheet, Transistors, Inchange Semiconductor

PDF File Details

Part number:

2SB1100

Manufacturer:

Inchange Semiconductor

File Size:

218.34kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistors.

  • Collector-Emitter Breakdown Voltage- : V(BR)CEO= -100V(Min)
  • High DC Current Gain- : hFE= 1000(Min)@ IC= -10A
  • <

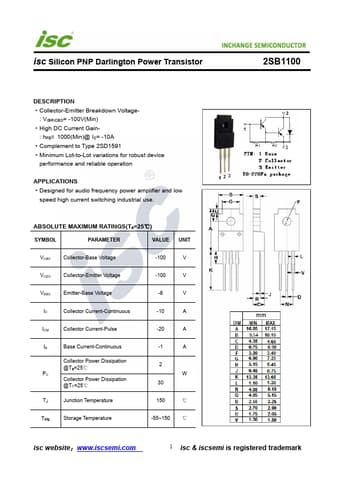

    Datasheet Preview: 2SB1100 📥 Download PDF (218.34kb)
    Page 2 of 2SB1100

    2SB1100 Application

    • Applications
    • Designed for audio frequency power amplifier and low speed high current switching industrial use. ABSOLUTE MAXIMUM RATINGS(Ta
