2SB1184 - Silicon PNP Power Transistor

Product Overview

📥 Download Datasheet

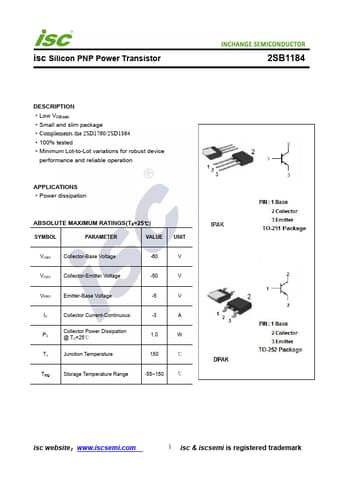

Datasheet preview – 2SB1184

Datasheet Details

Part number 2SB1184
Manufacturer Inchange Semiconductor
File Size 240.38 KB
Description Silicon PNP Power Transistor
Datasheet download datasheet 2SB1184 Datasheet
Additional preview pages of the 2SB1184 datasheet.

Product details

Description

Low VCE(sat) Small and slim package Complements the 2SD1760/2SD1864 100% tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Power dissipation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Tempe
