2SB1089 - Silicon PNP Power Transistors

Description

High Collector Current:: IC= -3A Low Collector Saturation Voltage : VCE(sat)= -1.5V(Max)@IC= -2A Complement to Type 2SD1567 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for power supplies or a variety of drives in

📥 Download Datasheet

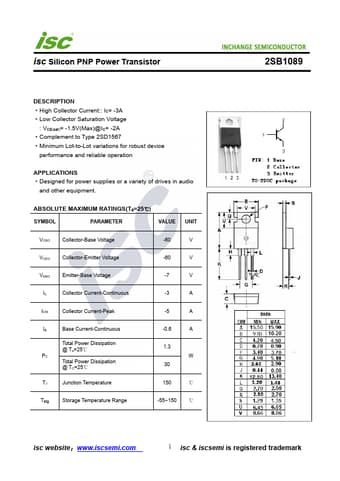

Datasheet preview – 2SB1089
