2SB727K Datasheet - Hitachi Semiconductor

2SB727K Silicon PNP Transistor

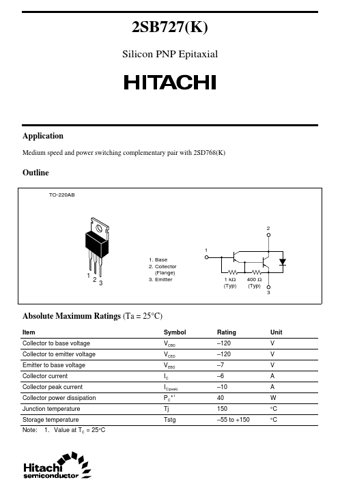

2SB727(K) Silicon PNP Epitaxial Application Medium speed and power switching complementary pair with 2SD768(K) Outline TO-220AB 2 1 23 1. Base 2. Collector (Flange) 3. Emitter 1 1 kΩ (Typ) 400 Ω (Typ) 3 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C Symbol VCBO VCEO VEBO IC I C.

2SB727K_HitachiSemiconductor.pdf

Preview of 2SB727K PDF
2SB727K Datasheet Preview Page 2 2SB727K Datasheet Preview Page 3

Datasheet Details

Part number:

2SB727K

Manufacturer:

Hitachi Semiconductor

File Size:

35.25 KB

Description:

Silicon pnp transistor.
