2SB720 - PNP Transistor

Product Overview

📥 Download Datasheet

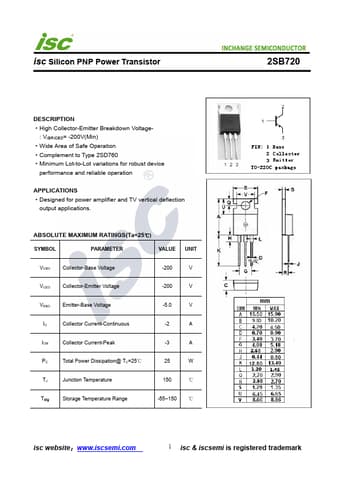

Datasheet preview – 2SB720

Datasheet Details

Part number 2SB720
Manufacturer INCHANGE
File Size 212.08 KB
Description PNP Transistor
Datasheet download datasheet 2SB720 Datasheet
Additional preview pages of the 2SB720 datasheet.

Product details

Description

High Collector-Emitter Breakdown Voltage- : V(BR)CEO= -200V(Min) Wide Area of Safe Operation Complement to Type 2SD760 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for power amplifier and TV vertical deflection output applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -200 V VCEO Collector-Emitter Voltage -200 V VEBO Emitter-Base Voltage -5.0 V
