2SB724 - PNP Transistor

2SB724 Description

isc Silicon PNP Power Transistor INCHANGE Semiconductor 2SB724 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -60V(Min). Good Linearity of hFE. Fast Switching Speed. 100% avalanche tested. M.

2SB724 Applications

* Designed for use in general purpose power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -

📥 Download Datasheet

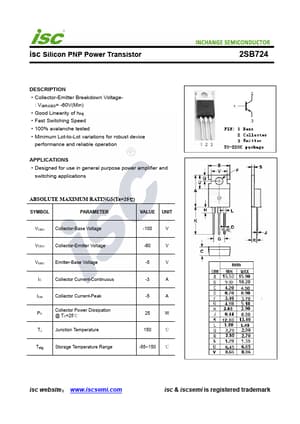

Preview of 2SB724 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB724
Manufacturer
INCHANGE
File Size
183.88 KB
Datasheet
2SB724-INCHANGE.pdf
Description
PNP Transistor
