2SC3127 Datasheet - Hitachi Semiconductor

2SC3127 Silicon NPN Transistor

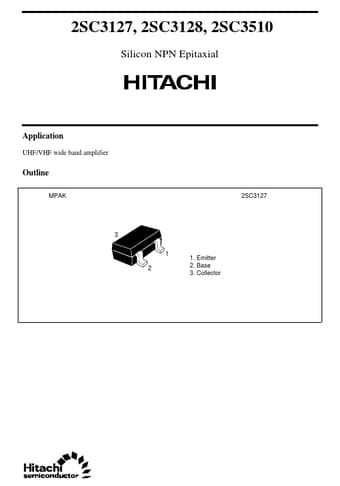

2SC3127, 2SC3128, 2SC3510 Silicon NPN Epitaxial Application UHF/VHF wide band amplifier Outline MPAK 2SC3127 3 1 2 1. Emitter 2. Base 3. Collector 2SC3127, 2SC3128, 2SC3510 TO-92 (2) 2SC3128, 2SC3510 1. Base 2. Emitter 3. Collector 3 2 1 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Note: Symbol VCBO VCEO VEBO IC PC Tj Tstg 2SC31.

2SC3127_HitachiSemiconductor.pdf
