2SC535 Datasheet - Hitachi Semiconductor

2SC535 - NPN TRANSISTOR

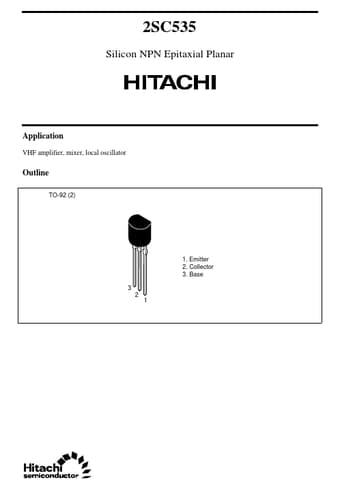

2SC535 Silicon NPN Epitaxial Planar Application VHF amplifier, mixer, local oscillator Outline TO-92 (2) 1.

Emitter 2.

Collector 3.

Base 3 2 1 2SC535 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 30 20 4 20 100 150 55 to +150 Unit V V V mA mW °C °C 2 2SC535 Electrical Characteri

2SC535 Features
