2SK1166 - Silicon N-Channel MOSFET

2SK1166 Description

2SK1165, 2SK1166 Silicon N-Channel MOS FET Application High speed power switching .

2SK1166 Features

* Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switching regulator and DC-DC converter Outline TO-3P D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK1165, 2SK1166 Absolute Maximum Ratings (Ta = 25

📥 Download Datasheet

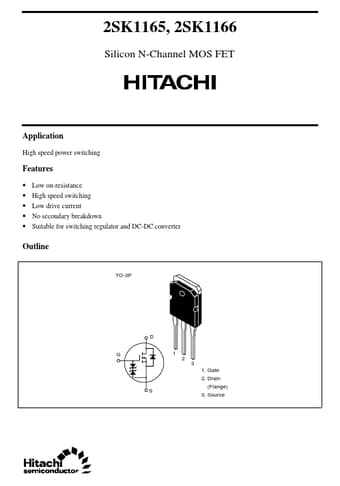

Preview of 2SK1166 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK1166
Manufacturer
Hitachi Semiconductor
File Size
50.10 KB
Datasheet
2SK1166_HitachiSemiconductor.pdf
Description
Silicon N-Channel MOSFET
