2SK2096 - Silicon N-Channel MOSFET

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

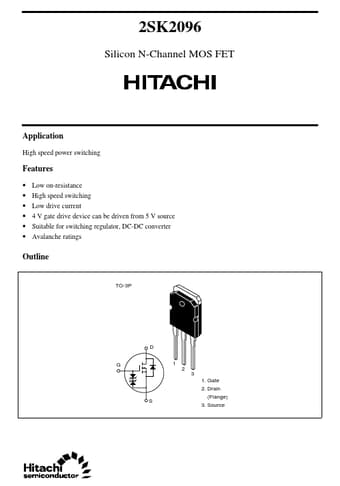

2SK2096 Silicon N-Channel MOSFET by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – 2SK2096

Datasheet Details

Part number	2SK2096
Manufacturer	Hitachi Semiconductor
File Size	37.50 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK2096 Datasheet
Additional preview pages of the 2SK2096 datasheet.

Product details

Features

Low on-resistance High speed switching Low drive current 4 V gate drive device can be driven from 5 V source Suitable for switching regulator, DC-DC converter Avalanche ratings Outline TO-3P D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK2096 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Avalanche current Avalan.
