2SK2090 - N-Channel MOS FET

Features

  • Gate can be driven by 2.5 V.
  • Because of its high input impedance, there’s no need to consider drive current 0.3 Marking 0.9 ±0.1 Marking: G22.

📥 Download Datasheet

Datasheet preview – 2SK2090

Datasheet Details

Part number 2SK2090
Manufacturer NEC
File Size 59.57 KB
Description N-Channel MOS FET
Datasheet download datasheet 2SK2090 Datasheet
Additional preview pages of the 2SK2090 datasheet.

📁 Similar Datasheet

  • 2SK209 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK209 - SILICON N-CHANNEL TRANSISTOR (UTC)
  • 2SK2091 - N-Channel MOSFET (Sanyo Semicon Device)
  • 2SK2094 - Small switching Transistors (Rohm)
  • 2SK2095N - Small switching Transistors (Rohm)
  • 2SK2096 - Silicon N-Channel MOSFET (Hitachi Semiconductor)
  • 2SK2096 - Silicon N-Channel MOSFET (Renesas)
  • 2SK2097 - Silicon N-Channel MOS FET (Hitachi Semiconductor)
  • 2SK2098-01MR - N-channel MOS-FET (Fuji Electric)
  • 2SK2099-01L - N-channel MOS-FET (Fuji Electric)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

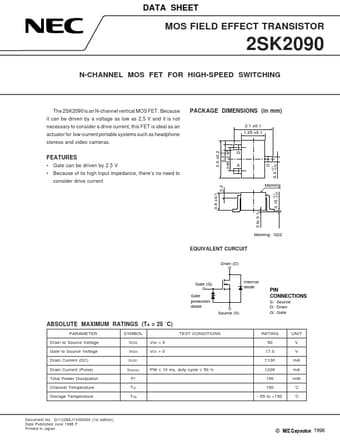

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK2090 N-CHANNEL MOS FET FOR HIGH-SPEED SWITCHING The 2SK2090 is an N-channel vertical MOS FET. Because it can be driven by a voltage as low as 2.5 V and it is not necessary to consider a drive current, this FET is ideal as an actuator for low-current portable systems such as headphone stereos and video cameras. PACKAGE DIMENSIONS (in mm) 2.1 ±0.1 1.25 ±0.1 2.0 ±0.2 0.3 +0.1 –0 0.65 0.65 G FEATURES • Gate can be driven by 2.5 V • Because of its high input impedance, there’s no need to consider drive current 0.3 Marking 0.9 ±0.1 Marking: G22 EQUIVALENT CURCUIT Drain (D) Gate (G) Gate protection diode Source (S) Internal diode 0 to 0.
