2SK2116 - Silicon N-Channel MOSFET

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

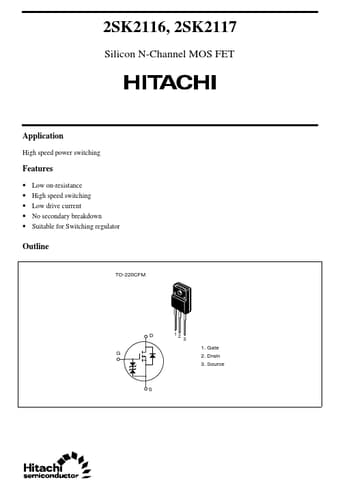

2SK2116 Silicon N-Channel MOSFET by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – 2SK2116

Datasheet Details

Part number	2SK2116
Manufacturer	Hitachi Semiconductor
File Size	33.95 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK2116 Datasheet
Additional preview pages of the 2SK2116 datasheet.

Product details

Features

Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for Switching regulator Outline TO-220CFM D G 12 3 1. Gate 2. Drain 3. Source S 2SK2116, 2SK2117 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage 2SK2116 2SK2117 Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes 1. PW ≤ 10.
