2SK2115 - N-Channel MOSFET Transistor

Product Overview

📥 Download Datasheet

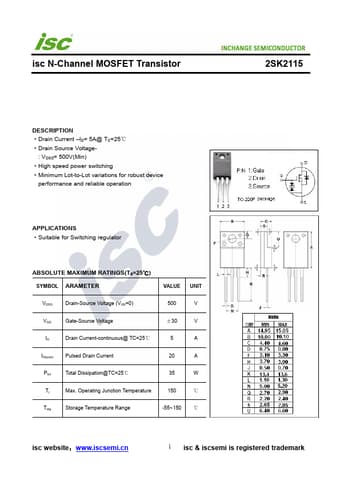

Datasheet preview – 2SK2115

Datasheet Details

Part number 2SK2115
Manufacturer Inchange Semiconductor
File Size 212.54 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK2115 Datasheet
Additional preview pages of the 2SK2115 datasheet.

Product details

Description

Drain Current ID= 5A@ TC=25℃ Drain Source Voltage- : VDSS= 500V(Min) High speed power switching Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Suitable for Switching regulator ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 5 A ID(puls) Pulsed Drain Current 20 A Ptot Total Diss
