2SK2108 - N-Channel Mosfet Transistor

2SK2108 Description

isc N-Channel MOSFET Transistor 2SK2108 .
Drain Current. ID= 6A@ TC=25℃. Drain Source Voltage- : VDSS= 250V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations f.

2SK2108 Applications

* Switching regulators ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 250 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 6 A ID(puls) Pulsed Drain Current 24 A Ptot Total Dissipation@TC=25℃ 25 W Tj Max. Op

📥 Download Datasheet

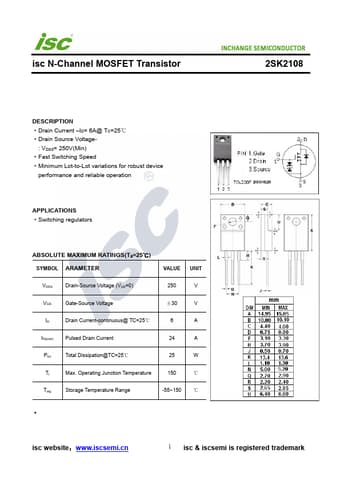

Preview of 2SK2108 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK2108
Manufacturer
Inchange Semiconductor
File Size
214.29 KB
Datasheet
2SK2108-InchangeSemiconductor.pdf
Description
N-Channel Mosfet Transistor
