2SK2117 - N-Channel MOSFET Transistor

2SK2117 Description

isc N-Channel MOSFET Transistor .
Drain Current. ID= 7A@ TC=25℃. Drain Source Voltage- : VDSS= 500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations f.

2SK2117 Applications

* Switching regulators ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 7 A ID(puls) Pulsed Drain Current 28 A Ptot Total Dissipation@TC=25℃ 35 W Tj Max. Op

📥 Download Datasheet

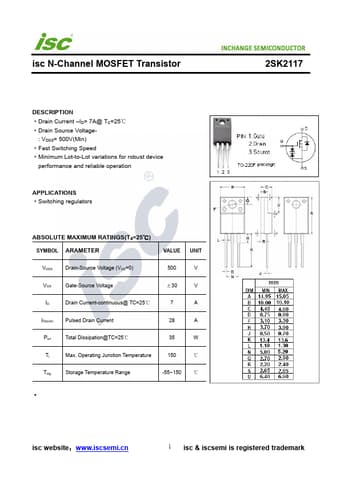

Preview of 2SK2117 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK2117
Manufacturer
Inchange Semiconductor
File Size
213.05 KB
Datasheet
2SK2117-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
