2SK3070 - N-Channel MOSFET

2SK3070 Description

2SK3070(L),2SK3070(S) Silicon N Channel MOS FET High Speed Power Switching ADE-208-684G (Z) 8th.Edition February 1999 .

2SK3070 Features

* Low on-resistance R DS(on) = 4.5 mΩ typ.
* Low drive current
* 4 V gate drive device can be driven from 5 V source Outline LDPAK 4 4 D 1 1 2 3 G 2 3 1. Gate 2. Drain 3. Source 4. Drain S Datasheet Title Absolute Maximum Ratings (Ta = 25°C) Item Drain to source vol

📥 Download Datasheet

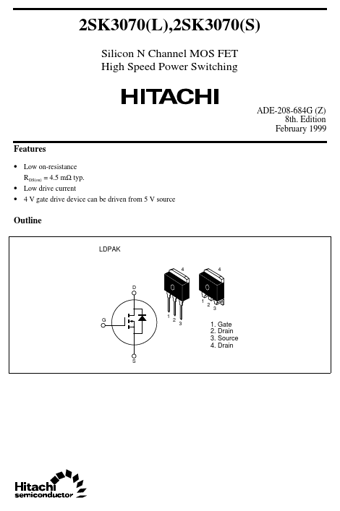

Preview of 2SK3070 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3070
Manufacturer
Hitachi Semiconductor
File Size
54.48 KB
Datasheet
2SK3070_HitachiSemiconductor.pdf
Description
N-Channel MOSFET
