2SK3134L - N-Channel MOSFET

2SK3134L Description

2SK3134(L), 2SK3134(S) Silicon N Channel MOS FET High Speed Power Switching ADE-208-721B (Z) 3rd.Edition February 1999 .

2SK3134L Features

* Low on-resistance R DS(on) = 4 mΩ typ.
* Low drive current
* 4 V gate drive device can be driven from 5 V source Outline LDPAK 4 4 D 1 1 2 3 G 2 3 1. Gate 2. Drain 3. Source 4. Drain S 2SK3134(L),2SK3134(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source

📥 Download Datasheet

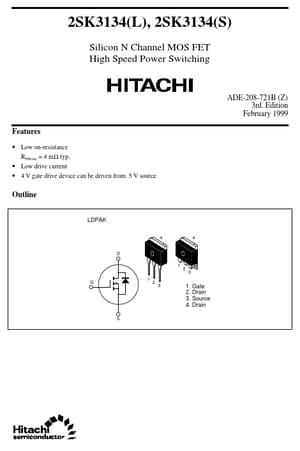

Preview of 2SK3134L PDF
datasheet Preview Page 2 datasheet Preview Page 3
