2SK3136 - N-Channel MOSFET

Name: 2SK3136
SKU: 2SK3136-203490

Hitachi Semiconductor

The 2SK3136 by Hitachi Semiconductor is a N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	2SK3136
Manufacturer	Hitachi Semiconductor
File Size	52.06 KB
Description	N-Channel MOSFET
Datasheet	2SK3136_HitachiSemiconductor.pdf

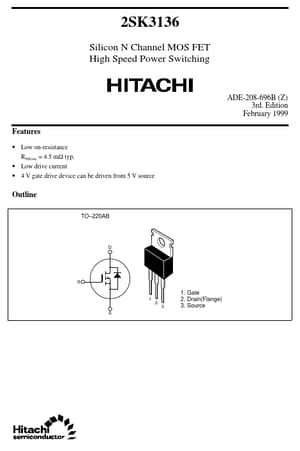

Additional preview pages of the 2SK3136 datasheet.

Low on-resistance R DS(on) = 4.5 mΩ typ.
Low drive current.
4 V gate drive device can be driven from 5 V source Outline TO.
220AB D G 1 2 S 3 1. Gate 2. Drain(Flange) 3. Source 2SK3136 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Note: Symbol VDSS.
