2SK3150S - N-Channel MOSFET

Product Overview

Hitachi Semiconductor

Part number	2SK3150S
Manufacturer	Hitachi Semiconductor
File Size	55.15 KB
Description	N-Channel MOSFET
Datasheet	2SK3150S Datasheet

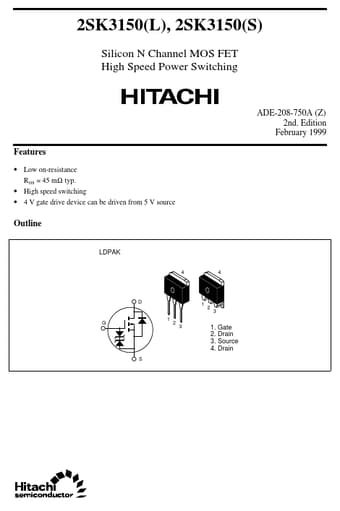

Additional preview pages of the 2SK3150S datasheet.

Low on-resistance R DS = 45 mΩ typ.
High speed switching.
4 V gate drive device can be driven from 5 V source Outline LDPAK 4 4 D 1 1 2 3 G 2 3 1. Gate 2. Drain 3. Source 4. Drain S 2SK3150(L),2SK3150(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature.
