2SK3151 - N-Channel MOSFET

2SK3151 Description

2SK3151 Silicon N Channel MOS FET High Speed Power Switching ADE-208-747A (Z) 2nd.Edition February 1999 .

2SK3151 Features

* Low on-resistance R DS (on) = 11.5 mΩ typ.
* High speed switching
* 4 V gate drive device can be driven from 5 V source Outline TO
* 3P D 2 1 G 1 3 S 2 3 1. Gate 2. Drain (Flange) 3. Source 2SK3151 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source vol

📥 Download Datasheet

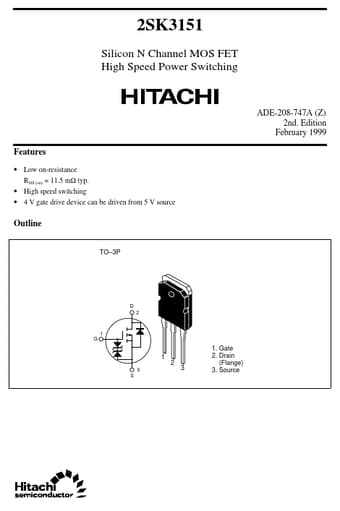

Preview of 2SK3151 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3151
Manufacturer
Hitachi Semiconductor
File Size
51.83 KB
Datasheet
2SK3151_HitachiSemiconductor.pdf
Description
N-Channel MOSFET
