2SK3152 - Silicon N-Channel MOSFET

Product Overview

Hitachi Semiconductor

Part number	2SK3152
Manufacturer	Hitachi Semiconductor
File Size	51.85 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK3152 Datasheet

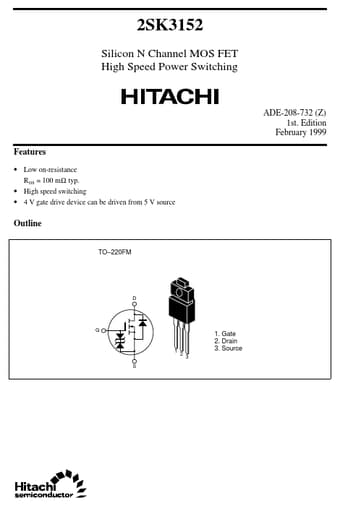

Additional preview pages of the 2SK3152 datasheet.

Low on-resistance R DS = 100 mΩ typ.
High speed switching.
4 V gate drive device can be driven from 5 V source Outline TO.
220FM D G 1 2 S 1. Gate 2. Drain 3. Source 3 2SK3152 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Note: Symbol VDSS VGSS ID.
