A1337 Datasheet - Hitachi Semiconductor

A1337 2SA1337

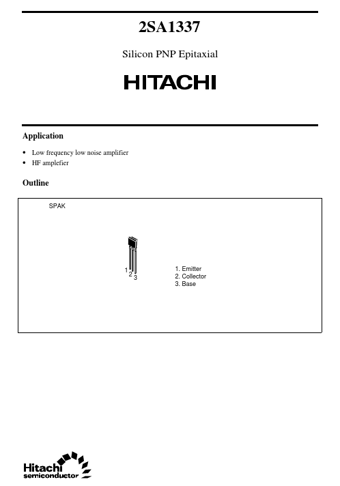

2SA1337 Silicon PNP Epitaxial Application Low frequency low noise amplifier HF amplefier Outline SPAK 1 23 1. Emitter 2. Collector 3. Base 2SA1337 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 55 50 5 100 300 150 55 to +150.

A1337-HitachiSemiconductor.pdf
