HD61203U

(Dot Matrix Liquid Crystal Graphic Display 64-Channel Common Driver)

HD61203U Features

* Dot matrix liquid crystal graphic display common driver with low impedance Low impedance: 1.5 kΩ max Internal liquid crystal display driver circuit: 64 circuits Internal dynamic display timing generator circuit Display duty cycle  When used with the

HD61203U General Description

The HD61203U is a common signal driver for dot matrix liquid crystal graphic display systems. It generates the timing signals (switch signal to convert LCD waveform to AC, frame synchronous signal) and supplies them to the column driver to control display. It provides 64 driver output lines and the .

HD61203U Datasheet (95.15 KB)

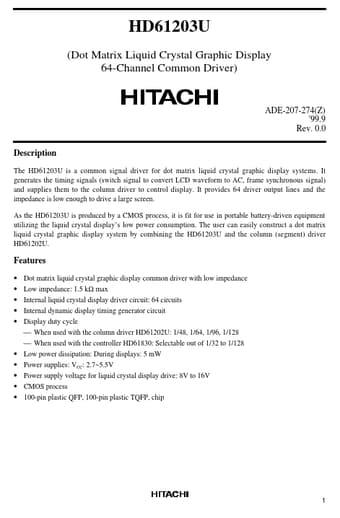

Preview of HD61203U PDF
