HD61103A

Dot Matrix Liquid Crystal Graphic Display 64-Channel Common Driver

HD61103A Features

* Dot matrix liquid crystal graphic display common driver with low impedance

* Low impedance: 1.5 kΩ max

* Internal liquid crystal display driver circuit: 64 circuits

* Internal dynamic display timing generator circuit

* Sel

HD61103A General Description

The HD61103A is a common signal driver for dot matrix liquid crystal graphic display systems. It generates the timing signals (switch signal to convert LCD waveform to AC, frame synchronous signal) and supplies them to the column driver to control display. It provides 64 driver output lines and the .

HD61103A Datasheet (107.11 KB)

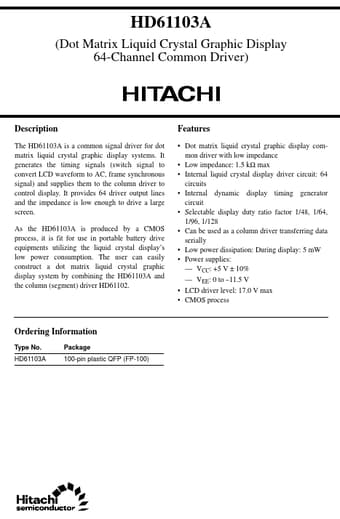

Preview of HD61103A PDF

Datasheet Details

Part number:

HD61103A

Manufacturer:

Hitachi

File Size:

107.11 KB

Description:

Dot matrix liquid crystal graphic display 64-channel common driver.
