HD61200 - LCD Driver

HD61200 Description

HD61200 (LCD Driver with 80-Channel Outputs) .
The HD61200 is a column driver LSI for a largearea dot matrix LCD.

HD61200 Features

* Liquid crystal display driver with serial/parallel conversion function
* Internal liquid crystal display driver: 80 drivers
* Drives liquid crystal panels with 1/32
* 1/128 duty cycle multiplexing
* Can interface to LCD controllers, HD61830 and HD61830B

📥 Download Datasheet

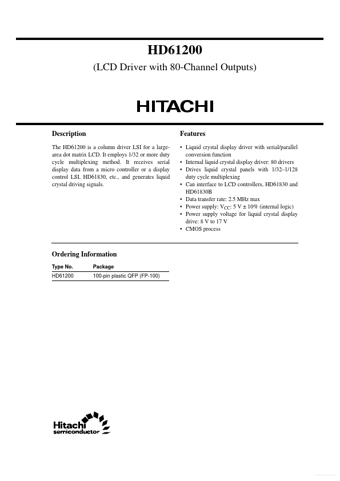

Preview of HD61200 PDF
