HD74AC365 - Hex Buffer/Driver with 3-State Output

Datasheet Summary

Features

  • 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers.
  • Outputs Source/Sink 24 mA.
  • HD74ACT365 has TTL-Compatible Inputs Pin Arrangement OE1 I O I O I O GND 1 2 3 4 5 6 7 8 (Top view) 16 VCC 15 OE2 14 I 13 O 12 I 11 O 10 I 9 O HD74AC365/HD74ACT365 Logic Symbol OE1 OE2 I O Pin Names OE1, OE2 I O 3-State Output: Enable Input (Active Low) Inputs Outputs Truth Table Inputs OE1 L L X H H L X Z : : : : OE2 L L H X High Voltage Level Low Voltage Level Imm.

📥 Download Datasheet

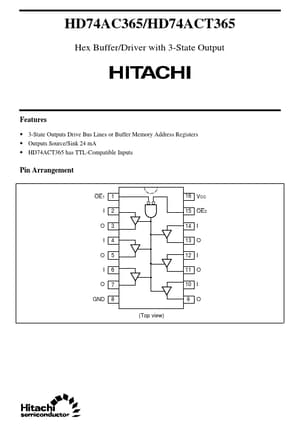

Datasheet preview – HD74AC365

Datasheet Details

Part number HD74AC365
Manufacturer Hitachi Semiconductor
File Size 53.46 KB
Description Hex Buffer/Driver with 3-State Output
Datasheet download datasheet HD74AC365 Datasheet
Additional preview pages of the HD74AC365 datasheet.
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text
HD74AC365/HD74ACT365 Hex Buffer/Driver with 3-State Output Features • 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers • Outputs Source/Sink 24 mA • HD74ACT365 has TTL-Compatible Inputs Pin Arrangement OE1 I O I O I O GND 1 2 3 4 5 6 7 8 (Top view) 16 VCC 15 OE2 14 I 13 O 12 I 11 O 10 I 9 O HD74AC365/HD74ACT365 Logic Symbol OE1 OE2 I O Pin Names OE1, OE2 I O 3-State Output: Enable Input (Active Low) Inputs Outputs Truth Table Inputs OE1 L L X H H L X Z : : : : OE2 L L H X High Voltage Level Low Voltage Level Immaterial High Impedance I L H X X Output O L H Z Z DC Characteristics (unless otherwise specified) Item Maximum quiescent supply current Maximum quiescent supply current Maximum ICC/input (HD74ACT365) Symbol I CC I CC I CCT Max 80 8.0 1.
