Datasheet Details

Part number:

HD74AC393

Manufacturer:

Renesas ↗

File Size:

190.84 KB

Description:

Dual modulo-16-counter.

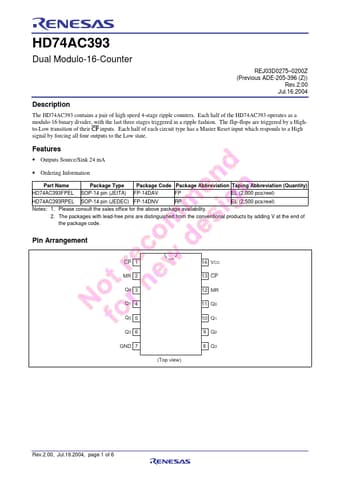

HD74AC393, Dual Modulo-16-Counter

The HD74AC393 contains a pair of high speed 4-stage ripple counters.

Each half of the HD74AC393 operates as a modulo-16 binary divider, with the last three stages triggered in a ripple fashion.

The flip-flops are triggered by a Highto-Low transition of their CP inputs.

Each half of each circuit type

HD74AC393 Features

* Outputs Source/Sink 24 mA

* Ordering Information Part Name Package Type Package Code Package Abbreviation Taping Abbreviation (Quantity) HD74AC393FPEL SOP-14 pin (JEITA) FP-14DAV FP EL (2,000 pcs/reel) HD74AC393RPEL SOP-14 pin (JEDEC) FP-14DNV RP EL (2,500 pcs/reel) Notes
