HD74HC374 Datasheet - Hitachi Semiconductor

Octal D-type Flip-Flops (with 3-state outputs)/Octal D-type Flip-flops (with inverted 3-state outputs)

HD74HC374 Features

* High Speed Operation: tpd (Clock to Q) = 18 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C) Functi

HD74HC374 General Description

These devices are positive edge triggered flip-flops. The difference between HD74HC374 and HD74HC534 is only that the former is a true outputs and the latter is a false outputs. Data at the D inputs, meeting the setup and hold time requirements, are transferred to the Q outputs on positive going tra.

HD74HC374 Datasheet (67.87 KB)

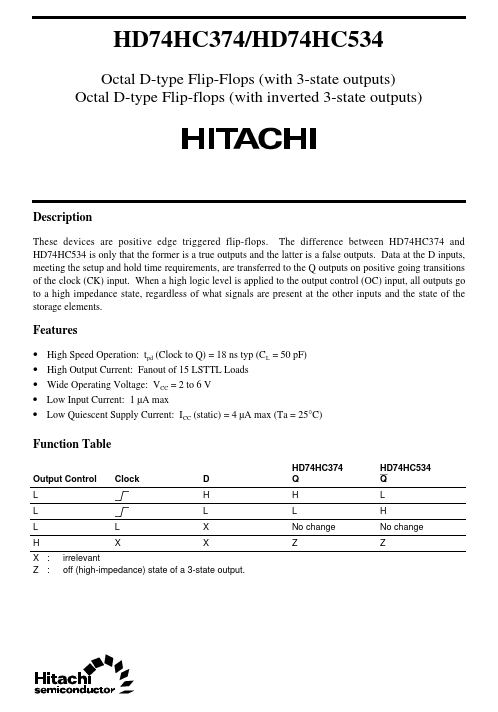

HD74HC374 Datasheet Preview — Preview of HD74HC374 PDF

Datasheet Details

Part number:

HD74HC374

Manufacturer:

Hitachi Semiconductor

File Size:

67.87 KB

Description:

Octal d-type flip-flops (with 3-state outputs)/octal d-type flip-flops (with inverted 3-state outputs).
