HD74HC368 - Hex Bus Drivers

Datasheet Summary

Features

  • High Speed Operation: tpd (A to Y) = 9 ns typ (CL = 50 pF).
  • High Output Current: Fanout of 15 LSTTL Loads.
  • Wide Operating Voltage: VCC = 2 to 6 V.
  • Low Input Current: 1 µA max.
  • Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C).
  • Ordering Information Part Name Package Type Package Code (Previous Code) Package Abbreviation HD74HC368P DILP-16 pin PRDP0016AE-B (DP-16FV) P HD74HC368FPEL SOP-16 pin (JEITA) PRSP0016DH-B.

📥 Download Datasheet

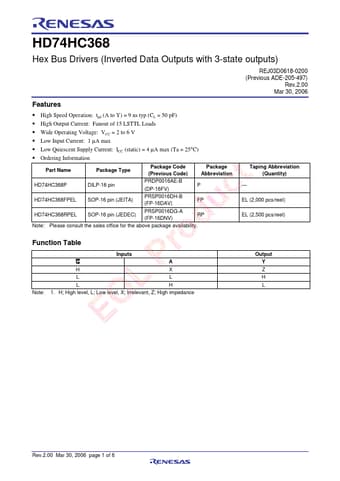

Datasheet preview – HD74HC368
