HD74HC353 - Dual 4-to-1-line Data Selectors/Multiplexers (with 3-state outputs)

Datasheet Summary

Description

Each of these data selectors/multiplexers contains inverters and drivers to supply full binary decoding data selection to the AND-OR-invert gates.

Separate strobe inputs (G) are provided for each of the two fourline sections.

Features

  • High Speed Operation: tpd (Data to Y) = 13 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C) HD74HC353 Function Table Select Input B X L L L L H H H H A X L L H H L L H H Data Inputs C0 X L H X X X X X X C1 X X X L H X X X X C2 X X X X X L H X X C3 X X X X X X X L H Output Control Output G H L L L L.

📥 Download Datasheet

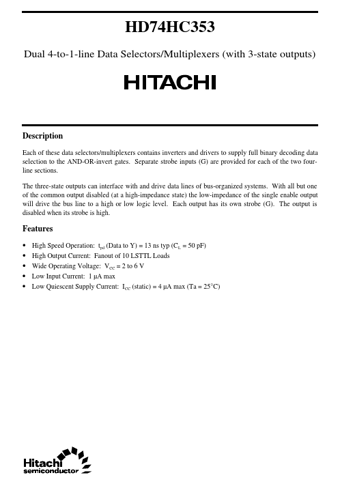

Datasheet preview – HD74HC353

Datasheet Details

Part number HD74HC353
Manufacturer Hitachi Semiconductor
File Size 50.57 KB
Description Dual 4-to-1-line Data Selectors/Multiplexers (with 3-state outputs)
Datasheet download datasheet HD74HC353 Datasheet
Additional preview pages of the HD74HC353 datasheet.

📁 Similar Datasheet

  • HD74HC353 - Dual 4-to-1-line Data Selectors/Multiplexers (Renesas)
  • HD74HC352 - Dual 4-to-1-line Data Selectors/Multiplexers (Renesas)
  • HD74HC354 - 8-to-1-line Data Selector/Multiplexer/Register (Renesas)
  • HD74HC356 - 8-to-1-line Data Selector/Multiplexer/Register (Renesas)
  • HD74HC30 - 8-input NAND Gates (Renesas)
  • HD74HC32 - Quad. 2-input OR Gates (Renesas)
  • HD74HC323 - 8-bit Universal Shift/Storage Register (Renesas)
  • HD74HC365 - Hex Bus Drivers (Renesas)
  • HD74HC366 - Hex Bus Drivers (Renesas)
  • HD74HC367 - Hex Bus Drivers (Renesas)
Other Datasheets by Hitachi Semiconductor
  • HD74HC352 - Dual 4-to-1-line Data Selectors/Multiplexers
  • HD74HC354 - 8-to-1-line Data Selectors/Multiplexer Register(with 3-state outputs)
  • HD74HC356 - 8-to-1-line Data Selectors/Multiplexer/Register(with 3-state outputs)
  • HD74HC30 - 8-input NAND Gate
  • HD74HC32 - Quad. 2-input OR Gates
  • HD74HC323 - 8-bit Universal Shift/Storage Register (with 3-state Outputs)
  • HD74HC365 - Hex Bus Drivers (with 3-state outputs)
  • HD74HC366 - Hex Bus Drivers (with 3-state outputs)

Full PDF Text Transcription

Click to expand full text
HD74HC353 Dual 4-to-1-line Data Selectors/Multiplexers (with 3-state outputs) Description Each of these data selectors/multiplexers contains inverters and drivers to supply full binary decoding data selection to the AND-OR-invert gates. Separate strobe inputs (G) are provided for each of the two fourline sections. The three-state outputs can interface with and drive data lines of bus-organized systems. With all but one of the common output disabled (at a high-impedance state) the low-impedance of the single enable output will drive the bus line to a high or low logic level. Each output has its own strobe (G). The output is disabled when its strobe is high.
