HD74HC367 - Hex Bus Drivers

Datasheet Summary

Features

  • High Speed Operation: tpd (A to Y) = 8.5 ns typ (CL = 50 pF).
  • High Output Current: Fanout of 15 LSTTL Loads.
  • Wide Operating Voltage: VCC = 2 to 6 V.
  • Low Input Current: 1 µA max.
  • Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C).
  • Ordering Information Part Name Package Type Package Code (Previous Code) Package Abbreviation HD74HC367P DILP-16 pin PRDP0016AE-B (DP-16FV) P HD74HC367FPEL SOP-16 pin (JEITA) PRSP0016DH-.

📥 Download Datasheet

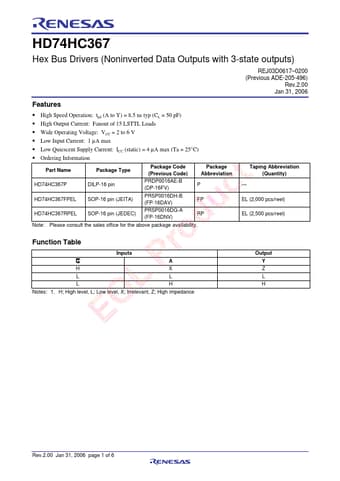

Datasheet preview – HD74HC367

Datasheet Details

Part number HD74HC367
Manufacturer Renesas
File Size 195.67 KB
Description Hex Bus Drivers
Datasheet download datasheet HD74HC367 Datasheet
Additional preview pages of the HD74HC367 datasheet.

📁 Similar Datasheet

  • HD74HC367 - Hex Bus Drivers (noninverted Data Outputs with 3-state outputs) (Hitachi Semiconductor)
  • HD74HC365 - Hex Bus Drivers (with 3-state outputs) (Hitachi Semiconductor)
  • HD74HC366 - Hex Bus Drivers (with 3-state outputs) (Hitachi Semiconductor)
  • HD74HC368 - Hex Bus Drivers (inverted Data Outputs with 3-state outputs) (Hitachi Semiconductor)
  • HD74HC30 - 8-input NAND Gate (Hitachi Semiconductor)
  • HD74HC32 - Quad. 2-input OR Gates (Hitachi Semiconductor)
  • HD74HC323 - 8-bit Universal Shift/Storage Register (with 3-state Outputs) (Hitachi Semiconductor)
  • HD74HC352 - Dual 4-to-1-line Data Selectors/Multiplexers (Hitachi Semiconductor)
  • HD74HC353 - Dual 4-to-1-line Data Selectors/Multiplexers (with 3-state outputs) (Hitachi Semiconductor)
  • HD74HC354 - 8-to-1-line Data Selectors/Multiplexer Register(with 3-state outputs) (Hitachi Semiconductor)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text
HD74HC367 Hex Bus Drivers (Noninverted Data Outputs with 3-state outputs) REJ03D0617–0200 (Previous ADE-205-496) Rev.2.00 Jan 31, 2006 Features • High Speed Operation: tpd (A to Y) = 8.5 ns typ (CL = 50 pF) • High Output Current: Fanout of 15 LSTTL Loads • Wide Operating Voltage: VCC = 2 to 6 V • Low Input Current: 1 µA max • Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C) • Ordering Information Part Name Package Type Package Code (Previous Code) Package Abbreviation HD74HC367P DILP-16 pin PRDP0016AE-B (DP-16FV) P HD74HC367FPEL SOP-16 pin (JEITA) PRSP0016DH-B (FP-16DAV) FP HD74HC367RPEL SOP-16 pin (JEDEC) PRSP0016DG-A (FP-16DNV) RP Note: Please consult the sales office for the above package availability.
