HD74HC4051 - 8-Channel Analog Multiplexer/Demultiplexer

HD74HC4051 Description

HD74HC4051 8-Channel Analog Multiplexer Demultiplexer .
This device connects together the outputs of 8 switches, thus achieving an 8 Channel Multiplexer.

HD74HC4051 Features

* High Speed Operation
* Wide Operating Voltage
* Low Quiescent Supply Current Function Table Control Inputs Inhibit L L L L L L L L H X : Don’t Care C L L L L H H H H X B L L H H L L H H X A L H L H L H L H X ON Switch X0 X1 X2 X3 X4 X5 X6 X7
* HD74HC4051 Pin Arran

📥 Download Datasheet

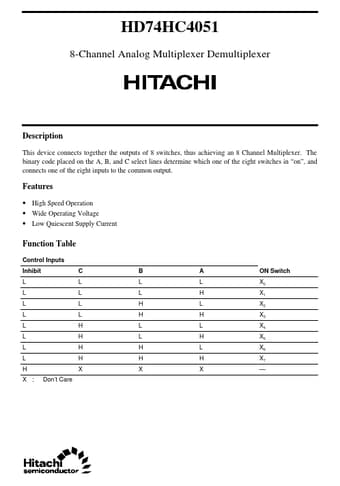

Preview of HD74HC4051 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HD74HC4051
Manufacturer
Hitachi Semiconductor
File Size
73.89 KB
Datasheet
HD74HC4051_HitachiSemiconductor.pdf
Description
8-Channel Analog Multiplexer/Demultiplexer
