HD74HCT533

Octal D-type Transparent Latches(with inverted 3-state outputs)

HD74HCT533 Features

* LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility High Speed Operation: tpd (Data to Q) = 14 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 4.5 to 5.5 V Low Input Cu

HD74HCT533 General Description

When the latch enable input is high, the Q outputs of HD74HCT373 will follow the D inputs and the Q outputs of HD74HCT533 will follow the inversion of the D inputs. When the latch enable goes low, data at the D inputs will be retained at the outputs until latch enable returns high again. When a high.

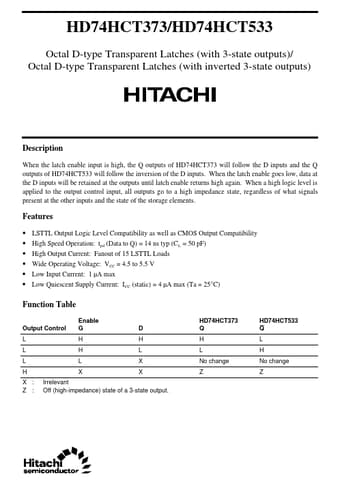

HD74HCT533 Datasheet (62.86 KB)

Preview of HD74HCT533 PDF

Datasheet Details

Part number:

HD74HCT533

Manufacturer:

Hitachi Semiconductor

File Size:

62.86 KB

Description:

Octal d-type transparent latches(with inverted 3-state outputs).
HD74HCT373/HD74HCT533 Octal D-type Transparent Latches (with 3-state outputs)/ Octal D-type Transparent Latches (with inverted 3-state outputs) Descr.
