HD74HCT1G00

2-input NAND Gate

Renesas Technology

HD74HCT1G00 Features

* The basic gate function is lined up as Renesas uni logic series.

* Supplied on emboss taping for high-speed automatic mounting.

* TTL compatible input level. Supply voltage range : 4.5 to 5.5 V Operating temperature range :

* 40 to +85°C

* |IOH| = IOL = 2 mA

HD74HCT1G00 Datasheet (77.94 KB)

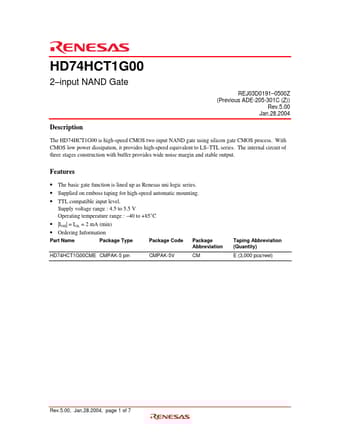

HD74HCT1G00 Datasheet Preview — Preview of HD74HCT1G00 PDF

Datasheet Details

Part number:

HD74HCT1G00

Manufacturer:

Renesas ↗ Technology

File Size:

77.94 KB

Description:

2-input nand gate.
