HD74HCT1G04

High speed CMOS inverter using silicon gate CMOS process

HD74HCT1G04 Features

* The basic gate function is lined up as hitachi uni logic series.

* Supplied on emboss taping for high speed automatic mounting.

* TTL compatible input level. Supply voltage range : 4.5 to 5.5 V Operating temperature range :

* 40 to +85°C

* |IOH| = IOL = 2 mA

HD74HCT1G04 Datasheet (67.13 KB)

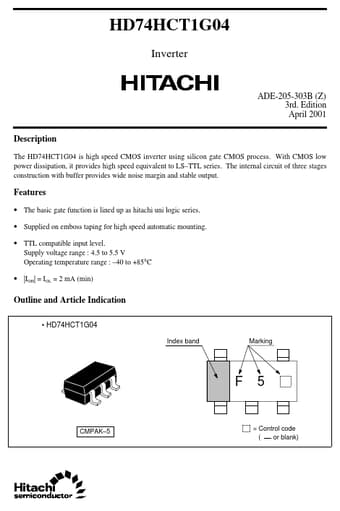

Preview of HD74HCT1G04 PDF

Datasheet Details

Part number:

HD74HCT1G04

Manufacturer:

Hitachi Semiconductor

File Size:

67.13 KB

Description:

High speed cmos inverter using silicon gate cmos process.
