HD74HCT564

Octal D-type Flip-Flops (with 3-state outputs)

Hitachi Semiconductor

HD74HCT564 Features

* LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility High Speed Operation: tpd (D to Q, Q) = 15 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 4.5 to 5.5 V Low Input Cu

HD74HCT564 General Description

These devices are positive edge triggered flip-flops. The difference between HD74HCT564 and HD74HCT574 is only that the former has inverting outputs and the latter has non-inverting outputs. Data at the D inputs, meeting the set-up and hold time requirements, are transferred to the Q or Q outputs on.

HD74HCT564 Datasheet (68.70 KB)

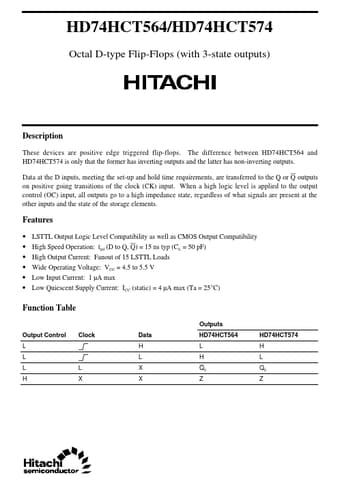

HD74HCT564 Datasheet Preview — Preview of HD74HCT564 PDF

Datasheet Details

Part number:

HD74HCT564

Manufacturer:

Hitachi Semiconductor

File Size:

68.70 KB

Description:

Octal d-type flip-flops (with 3-state outputs).
