HD74HCT563 Octal Transparent Latches (with 3-state outputs)

When the latch enable (LE) input is high, the Q outputs of HD74HCT563 will follow the inversion of the D inputs and the Q outputs of HD74HCT573 will follow the D inputs. When the latch enable goes low, data at the D inputs will be retained at the outputs until latch enabled returns high again. When .

HD74HCT563 Features

* LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility High Speed Operation: tpd (D to Q, Q) = 13 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 4.5 to 5.5 V Low Input Cu

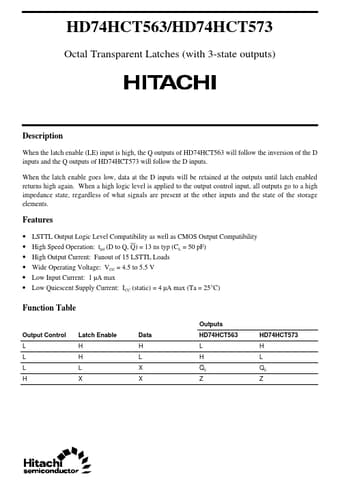

HD74HCT563_HitachiSemiconductor.pdf

HD74HCT563 Datasheet Preview — Preview of HD74HCT563 PDF

Datasheet Details

Part number:

HD74HCT563

Manufacturer:

Hitachi Semiconductor

File Size:

68.49 KB

Description:

Octal transparent latches (with 3-state outputs).
