HM62256A - 32/768-word x 8-bit High Speed CMOS Static RAM

Datasheet Summary

Description

Symbol Function A0 A14 Address

Features

  • br>.
  • High speed: Fast Access time 85/100/120/150 ns (max).
  • Low Power Standby: 5 µW (typ) (L/L-SL version) Operation: 40 mW (typ) (f = 1 MHz).
  • Single 5 V supply.
  • Completely static memory No clock or timing strobe required.
  • Equal access and cycle times.
  • Common data input and output: Three state output.
  • Directly TTL compatible: All inputs and outputs.
  • Capability of battery back up operation Note: This device is not available for ne.

📥 Download Datasheet

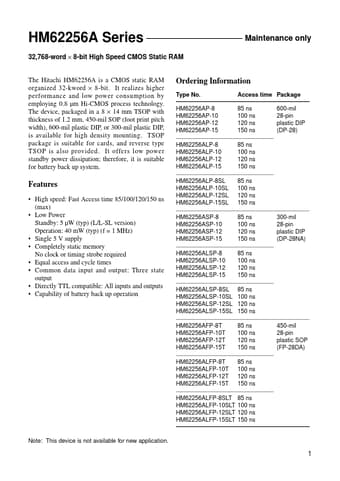

Datasheet preview – HM62256A

Datasheet Details

Part number HM62256A
Manufacturer Hitachi Semiconductor
File Size 71.51 KB
Description 32/768-word x 8-bit High Speed CMOS Static RAM
Datasheet download datasheet HM62256A Datasheet
Additional preview pages of the HM62256A datasheet.

📁 Similar Datasheet

  • HM62256 - 32768 word x 8-Bit High Speed CMOS Static RAM (Hitachi)
  • HM62256LP - 32768 word x 8-Bit High Speed CMOS Static RAM (Hitachi)
  • HM6221 - High PSRR LDO (H&M Semiconductor)
  • HM6203 - High Input Voltage LDO Linear Regulators (H&M semi)
  • HM6207 - ultra sensitive hall effect switch (H&M semi)
  • HM6207H - 256K High Speed SRAM (Hitachi)
  • HM6208 - 4 Bit CMOS Static RAM (Hitachi)
  • HM621100A - 1048576 word / 1 Bit High Speed CMOS Static RAM (Hitachi)
  • HM6215 - Fast Transient Response LDO (H&M Semiconductor)
  • HM6216 - positive voltage regulators (H&M semi)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text
HM62256A Series 32,768-word × 8-bit High Speed CMOS Static RAM The Hitachi HM62256A is a CMOS static RAM organized 32-kword × 8-bit. It realizes higher performance and low power consumption by employing 0.8 µm Hi-CMOS process technology. The device, packaged in a 8 × 14 mm TSOP with thickness of 1.2 mm, 450-mil SOP (foot print pitch width), 600-mil plastic DIP, or 300-mil plastic DIP, is available for high density mounting. TSOP package is suitable for cards, and reverse type TSOP is also provided. It offers low power standby power dissipation; therefore, it is suitable for battery back up system. Maintenance only Ordering Information Type No.
