HM62256B - 256k SRAM (32-kword x 8-bit)

Datasheet Summary

Description

The Hitachi HM62256B Series is a CMOS static RAM organized 32,768-word × 8-bit.

It realizes higher performance and low power consumption by employing 0.8 µm Hi-CMOS process technology.

Features

  • Single 5.0 V supply: 5.0 V ± 10%.
  • Access time: 55 ns/70 ns/85 ns (max).
  • Power dissipation:  Active: 25 mW (typ) (f = 1 MHz)  Standby: 1.0 µW (typ).
  • Completely static memory  No clock or timing strobe required.
  • Equal access and cycle times.
  • Common data input and output  Three state output.
  • Directly TTL compatible all inputs and outputs.
  • Battery backup operation HM62256B Series Ordering Information Type No. HM62256BLP-7.

📥 Download Datasheet

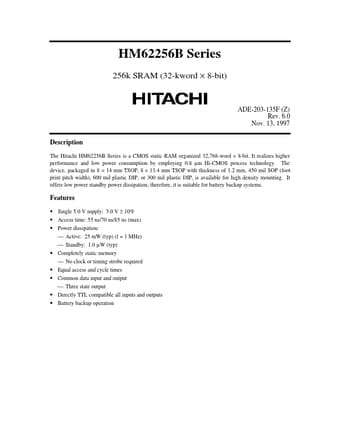

Datasheet preview – HM62256B

Datasheet Details

Part number HM62256B
Manufacturer Hitachi Semiconductor
File Size 154.48 KB
Description 256k SRAM (32-kword x 8-bit)
Datasheet download datasheet HM62256B Datasheet
Additional preview pages of the HM62256B datasheet.
