HSU119 - Silicon Epitaxial Planar Diode for High Speed Switching

Product Overview

Hitachi Semiconductor

Part number	HSU119
Manufacturer	Hitachi Semiconductor
File Size	26.75 KB
Description	Silicon Epitaxial Planar Diode for High Speed Switching
Datasheet	HSU119 Datasheet

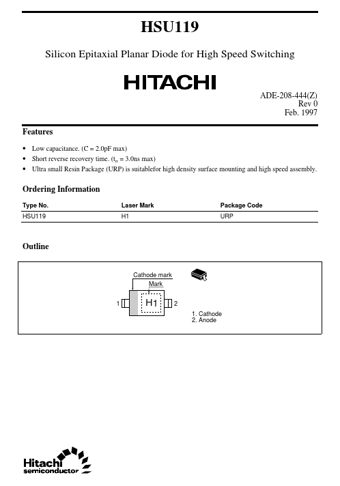

Additional preview pages of the HSU119 datasheet.

Low capacitance. (C = 2.0pF max).
Short reverse recovery time. (trr = 3.0ns max).
Ultra small Resin Package (URP) is suitablefor high density surface mounting and high speed assembly. Ordering Information Type No. HSU119 Laser Mark H1 Package Code URP Outline Cathode mark Mark 1 H1 2 1. Cathode 2. Anode HSU119 Absolute Maximum Ratings (Ta = 25°C) Item Peak reverse voltage Reverse voltage Average forward current Peak rectified current Non-Repetitive peak forward.
