HSU276 - Silicon Schottky Barrier Diode for Mixer

Product Overview

Hitachi Semiconductor

Part number	HSU276
Manufacturer	Hitachi Semiconductor
File Size	24.76 KB
Description	Silicon Schottky Barrier Diode for Mixer
Datasheet	HSU276 Datasheet

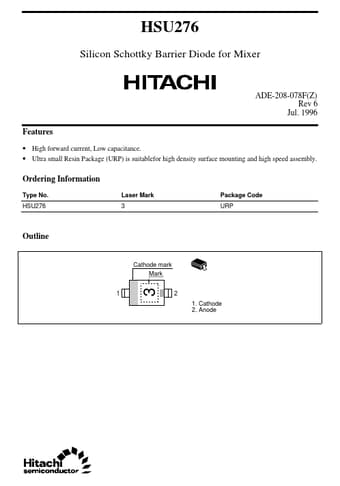

Additional preview pages of the HSU276 datasheet.

High forward current, Low capacitance.
Ultra small Resin Package (URP) is suitablefor high density surface mounting and high speed assembly. Ordering Information Type No. HSU276 Laser Mark 3 Package Code URP Outline Cathode mark Mark 1 3 2 1. Cathode 2. Anode HSU276 Absolute Maximum Ratings (Ta = 25°C) Item Reverse voltage Average rectified current Junction temperature Storage temperature Symbol VR IO Tj Tstg Value 3 30 125.
55 to +125 Unit V mA °C °C Electrica.
